Worker carrying coiled hose walking toward a large robotic arm in an industrial workshop

Specs

Technology

/

Specifications

Designed with intention with innovation at it’s core.

Discover the most advanced piece of construction
equipment in the industry.

Our groundbreaking approach unlocks architectural freedom impossible with traditional methods ushering in structures that are more resilient, more expressive, and more attuned to the needs of the future. From urban infill to imaginative commercial spaces, the Titan Print Suite delivers with precision, speed, and limitless possibility all at lower cost. See how we’re building a better way forward.

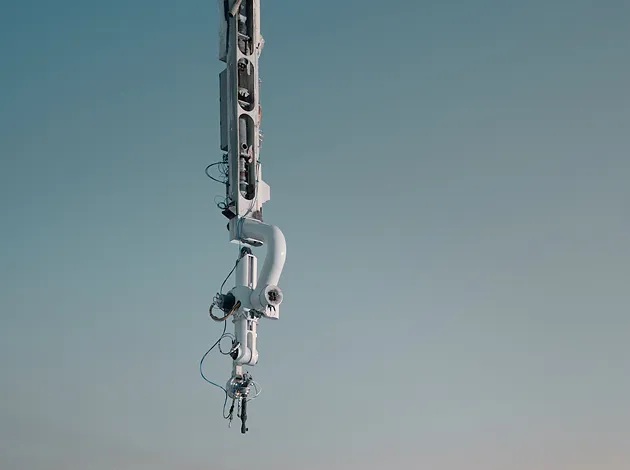

Articulated robotic boom arm with suspended 3D-printing extruder against dusk sky
Engine
Diesel
Max Print Height
27 feet
Max RUn Time
24 hours
No. of Operators
2

Print Dimensions

Robotic construction printer on tracked base with arched arm above grid platform and wireframe outlinesRobotic construction printer on tracked base with arched arm above grid platform and wireframe outlines
Print Dimensions
40’W × 75’ × 27’
Setup Time
2-3 hours
Mobilization
2 prints per mobilization
A
Max Print Height
27'
(8.2 M)
B
Max Length
100'
(30.5 M)
C
Max Width
40 Ft
(12.2 M)
D
Min Setback
10 Ft
(3 M)
E
Reach Radius
70'
(21.3 M)

Pushing the boundaries of speed, cost, and autonomy, Titan unlocks a new chapter in robotic construction to position builders to deliver resilient, sustainable housing solutions at scale.

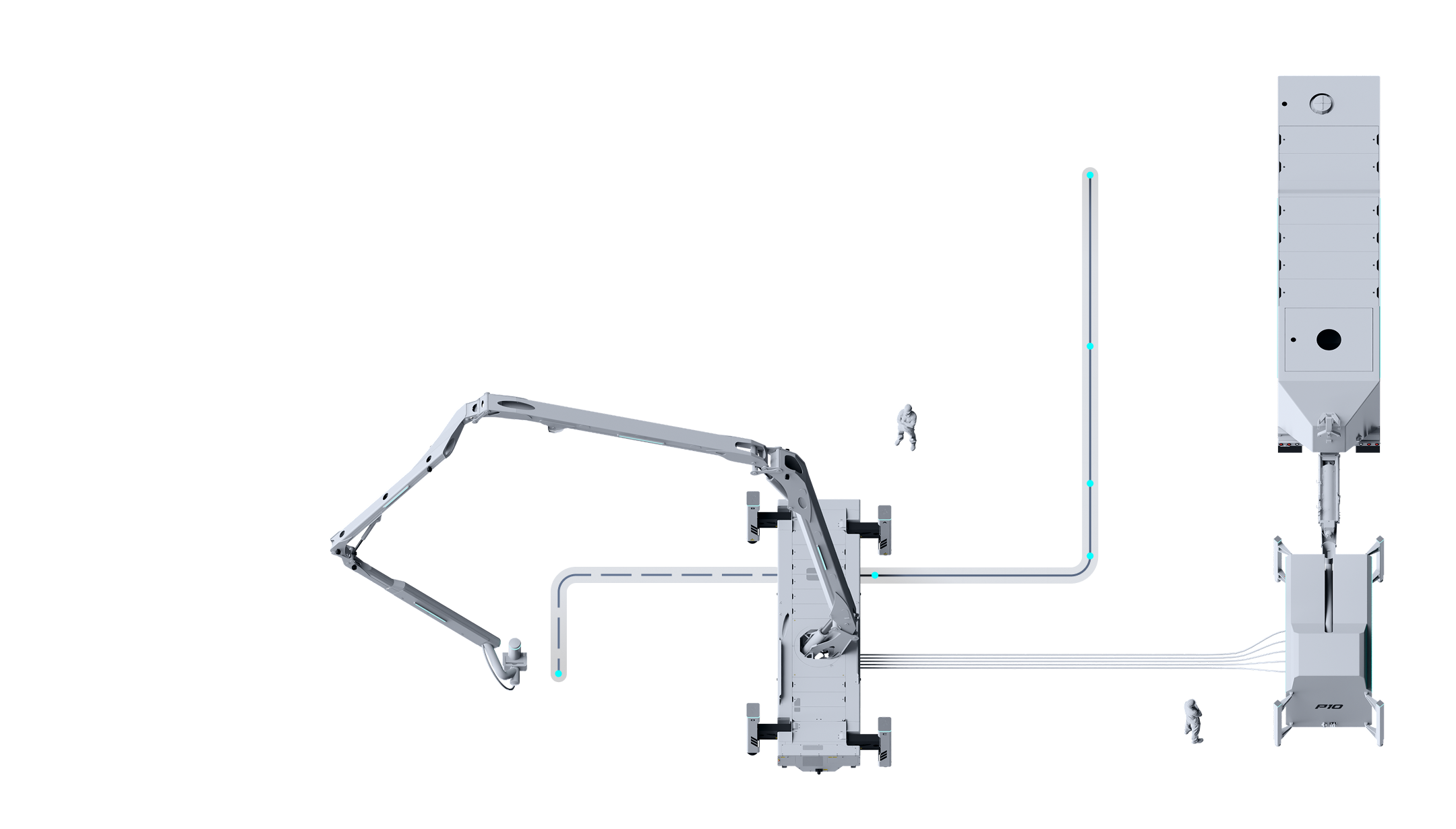

Top-down view of a robotic 3D printing system with articulated arm, material silo, and grid layout

Material Delivery

When your project is ready to print, materials are seamlessly blended in the mixer, routed through the pump, and fed into Titan initiating a continuous, efficient build process from start to finish.

Printer Stats

Printer Type & Build Volume
Printer Type
4 Boom Serial Arm
Arm DOF
5 Degrees of Freedom
Printhead DOF
6 Degrees of Freedom
Reach Radius
70 ft
(21.3 M)
Build Height
27 Ft
(8.2 M)
Printable Square Footage per Story
12,000 FT²
(1115 M²)
Deployable Grade
15% Grade
Mobility
Drive Type
Track w/ Steel Shoes
Max Drive Speed
.62 mph
(1 KM/H)
Max Drive Grade
15% grade
Power
Generator Requirement
3 Phase 480
Optional Conversion Kit
Split Phase 240
Environmental
Max Operational

Sustained Winds
20 MPH
(32.2 KM/H)
Max Operational

Wind Gusts
30 MPH
(48.3 KM/H)
Operational Temp
32°F-113°F
(0°C-45°C)
Material & Print Speed
Max Extrusion Rate
3 YD³/HR
(2.3 M³/HR)
Max Extrusion Speed
16 IN/S
(406 MM/S)
Max Travel Speed
20 IN/S
(508 MM/S)
Max Aggregate Size
.187 IN
(4.75 MM)
Nozzle Precision
+- .059 IN
(1.5 MM)
Size & Weight
Dry Weight
48,000 lbs
(21,800 KG)
Packed Dimensions
For Transport
36.7 L 6.9 W 8.2 H
(11.2 L 2.1 W 2.5 H)
Translucent 3D floor plan model with curved walls on a dark grid
Build Faster.
Build Smarter.
